Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector

Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector

  • Highlight

    food metal detector

  • Conveyor Speed
    0.2m/s - 2.5m/s
  • Detection Accuracy
    0.2mm
  • Detection Range
    0.4mm - 25.4mm
  • Detection Type
    Ferrous, Non-Ferrous, Stainless Steel
  • Humidity
    20%-90%
  • IP Rating
    IP65
  • Operating Temperature
    0°C - 40°C
  • Power Consumption
    Varies
  • Power Supply
    220V/50Hz
  • Product Name
    Food Metal Detector
  • Product Size
    Varies
  • Product Weight
    Varies
  • Reject System
    Air Blast, Pusher, Diverter
  • Warranty
    1 Year
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    GENIUSSA
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector

Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 0Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 1Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 2Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 3Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 4Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 5Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 6Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 7Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 8Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 9Touch Screen Aluminum Foil Packaging Metal Detector Food Production Line Detector Fine Particle Metal Detector 10

Product features and advantages:
This metal detector is a magnetic induction metal detector, mainly used for metal foreign object detection in aluminum foil packaging products.
1. The metal detector adopts German digital circuit design and has high detection accuracy.
2. The metal detector has a strong inhibitory effect on the product effects of aluminum foil packaging products, aquatic products, quick-frozen foods, and preserved products.
3. The metal detector has a scientific design and a simple and detachable rack for user cleaning.
4. The detector probe and the frame are made of stainless steel, with exquisite craftsmanship and strong waterproof ability.

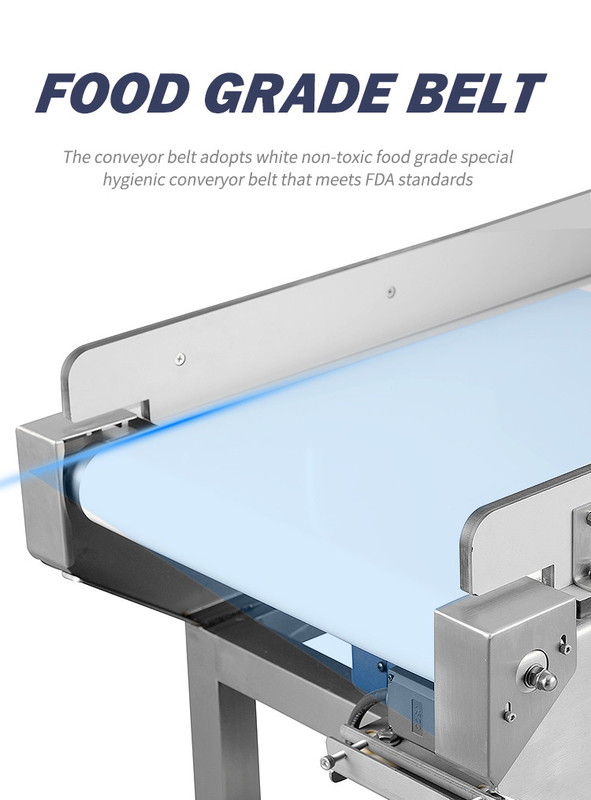

5. The metal detector conveyor belt adopts white food grade imported conveyor belt.
6. The detector can detect common metal impurities (iron nails, blades, steel needles, screws, springs, etc.) in food.
7. When the metal detector detects that the food metal impurities are trying to pass, it automatically stops and reversing and sounds and sounds an alarm. (External alarm can be used)
8, the sensitivity of the digital precision adjustment 1-120 level, the host computer design using computer circuit board.

Model SA503 Series 3008 3012 4008 4010 4012 4015 4020 4025
Through width (MM) 300 customizable
Passing height (MM) 100 120 150 200 250 300 350 400

Standard test

Sensitivity

Fe (ΦMM) 0.6 0.8 1.0 1.2 1.5 2.0 2.5 3.0
Alarm mode Sound and light alarm, the conveyor automatically stops, when the automatic rejection structure is selected, the conveyor belt does not stop, automatically rejects
Machine material 304stainless steel
Belt speed 27m/min
surroundings Temperature: 18-50oC, humidity: 30-90%
Overall size 1660×750×1100MM
Machine weight About 200KG
Remarks: The above sensitivity parameters are the test results when there is no environmental interference in the empty machine. The actual application will be slightly different due to the use environment and component factors of the detected object.
