Product features and advantages:

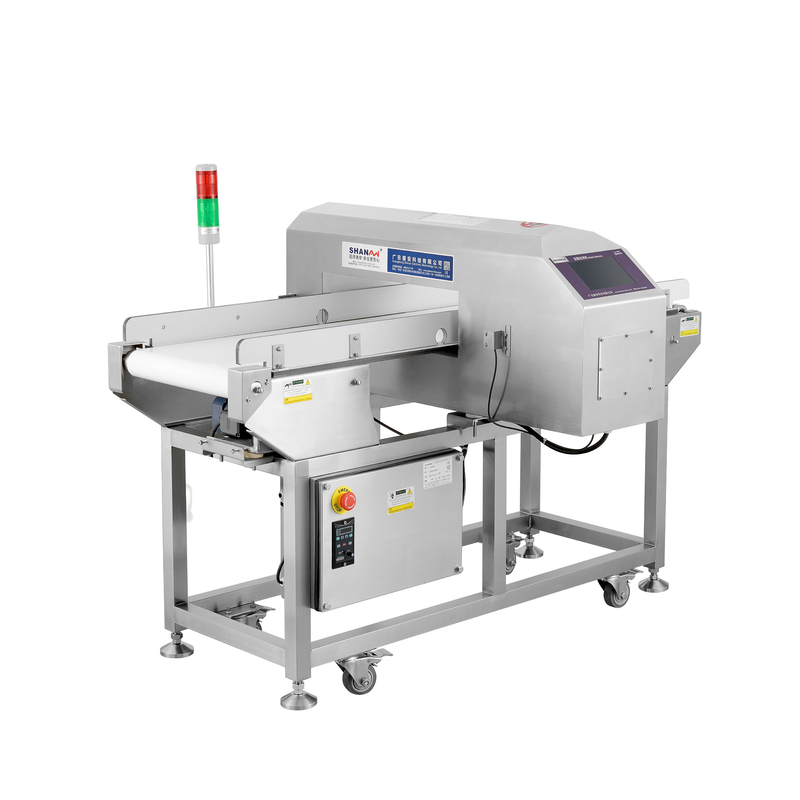

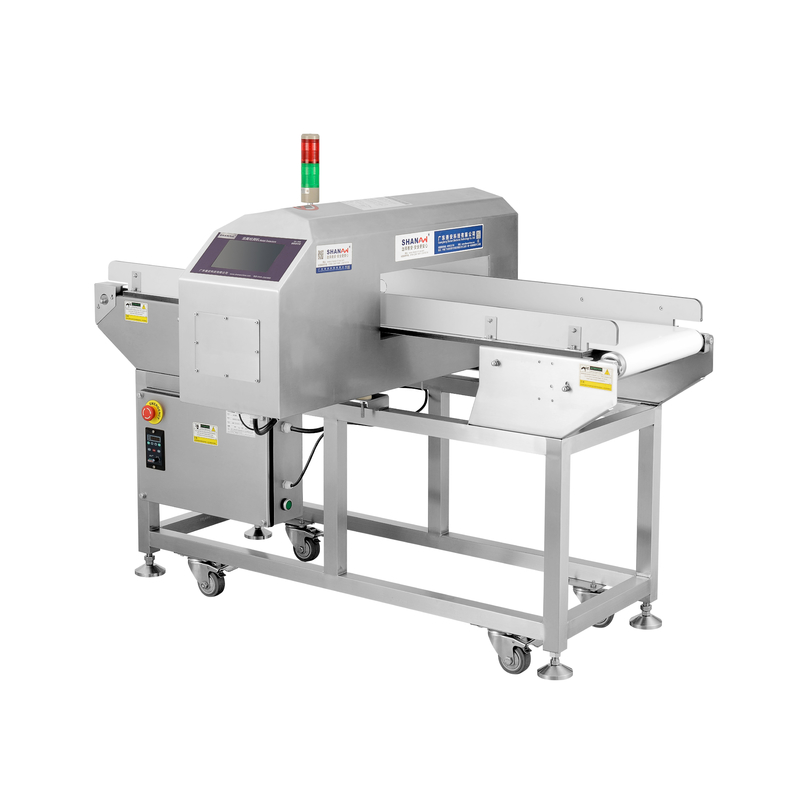

This metal detector is a magnetic induction metal detector, mainly used for metal foreign object detection in aluminum foil packaging products.
1. The metal detector adopts German digital circuit design and has high detection accuracy.
2. The metal detector has a strong inhibitory effect on the product effects of aluminum foil packaging products, aquatic products, quick-frozen foods, and preserved products.
3. The metal detector has a scientific design and a simple and detachable rack for user cleaning.
4. The detector probe and the frame are made of stainless steel, with exquisite craftsmanship and strong waterproof ability.
5. The metal detector conveyor belt adopts white food grade imported conveyor belt.
6. The detector can detect common metal impurities (iron nails, blades, steel needles, screws, springs, etc.) in food.
7. When the metal detector detects that the food metal impurities are trying to pass, it automatically stops and reversing and sounds and sounds an alarm. (External alarm can be used)
8, the sensitivity of the digital precision adjustment 1-120 level, the host computer design using computer circuit board.
| Model SA Series | 3008 | 3012 | 4008 | 4010 | 4012 | 4015 | 4020 | 4025 | |||||||
| Through width (MM) | 300 customizable | ||||||||||||||
| Passing height (MM) | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |||||||
|
Standard test Sensitivity |
Fe (ΦMM) | 0.6 | 0.8 | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | ||||||
| Alarm mode | Sound and light alarm, the conveyor automatically stops, when the automatic rejection structure is selected, the conveyor belt does not stop, automatically rejects | ||||||||||||||
| Machine material | 304stainless steel | ||||||||||||||
| Belt speed | 27m/min | ||||||||||||||
| surroundings | Temperature: 18-50oC, humidity: 30-90% | ||||||||||||||
| Overall size | 1660×750×1100MM | ||||||||||||||
| Machine weight | About 200KG | ||||||||||||||
|
Remarks: The above sensitivity parameters are the test results when there is no environmental interference in the empty machine. The actual application will be slightly different due to the use environment and component factors of the detected object. |
|||||||||||||||
