Food inspection industry automatic inline needle metal detector Air Blast 220 V 50 Hz Multi - Frequency

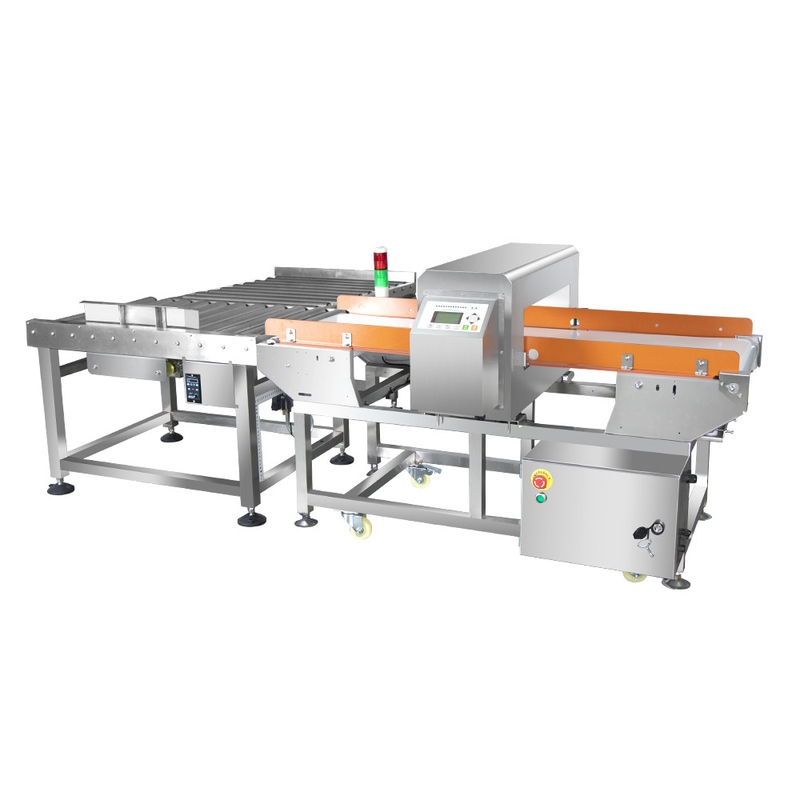

The conveyorized VCF Metal Detector system can be configured to suit factory and product requirements. It includes different reject options including as a Stop on Detect (band stop), air blast, pusher, carriage retract band, diverters or powered decliners. This system is ideally suited for packaged product from both the food and pharmaceutical industries.
It can detect all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferrous metal (Copper, Aluminum etc.) and Stainless Steel.
Introduction:
Professional metal detection , special design for production line, high sensitivity and stability detection of Ferrious metal(Fe), Non-Ferrous(Copper, Aluminum) and stainless steel.Designed for food industrial ,garments industrial and pharmaceutical industrial use.Also can fit for detecting the chemical products, rubber products.
Specification
| Model | MDC-Symmetric D | Rejection System | Air blast, swing arm, arm pusher (Option) |
| Detection Theory | Balanced Coil | Operation Way | Touch Screen |
| Detection Adjustment | Auto and Manual | Alarm | Buzzer |
| Conveyor Speed | 25m/min, adjustable optional | Power | AC110V/220V 50-60HZ |
| Sensitivity Adjustment | Manual | Packing Size | 1000*900*1400mm |
| Deliver time | 15-20 workdays | ||
| Package | Plywooden case for package suitable for export shipment | ||
| Payment term | 50%T/T deposit,50% before shipping | ||
Features
1. Multi-Frequency&Dual-SystemDetection.
2. Very high resolution for Phase-Angle adjustment.
3. Automatic product effect & sensitive study.
4. Based on High speed 32bit CPU control unit.

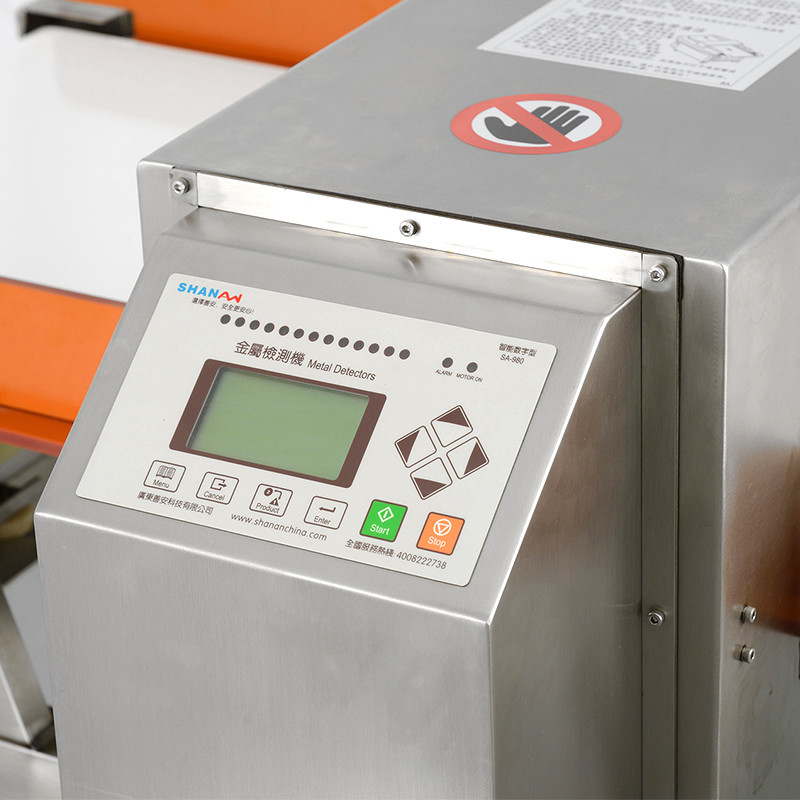

5. LCD with Touch Screen, Easy to operation.
6. High speed 32bit DSP and advanced signal filter.
7. Friendly operation system with Multi-Language.
8. 3 Level authorization & Multi-operator setup.
9. 100 products memory.
10. Detection & Login records.
11. Standard equipped USB port for data export.
12. Enthernet connection capability.

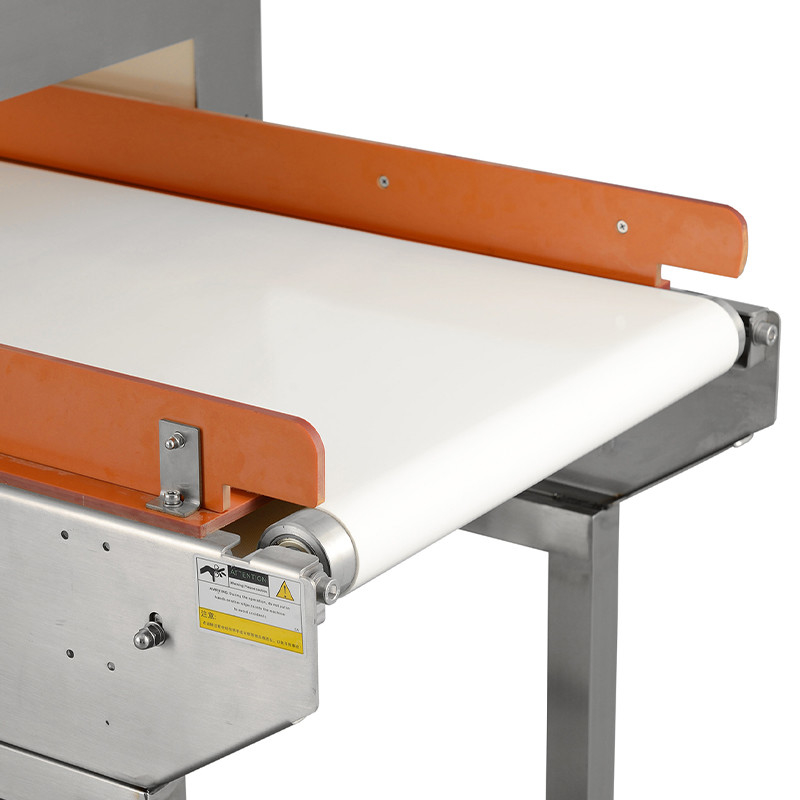

13. Tools free conveyor belt disassemble.
14. Small size conveyor design.
15. IP65 optional.
