Highest European standard food metal detector with pusher rejector

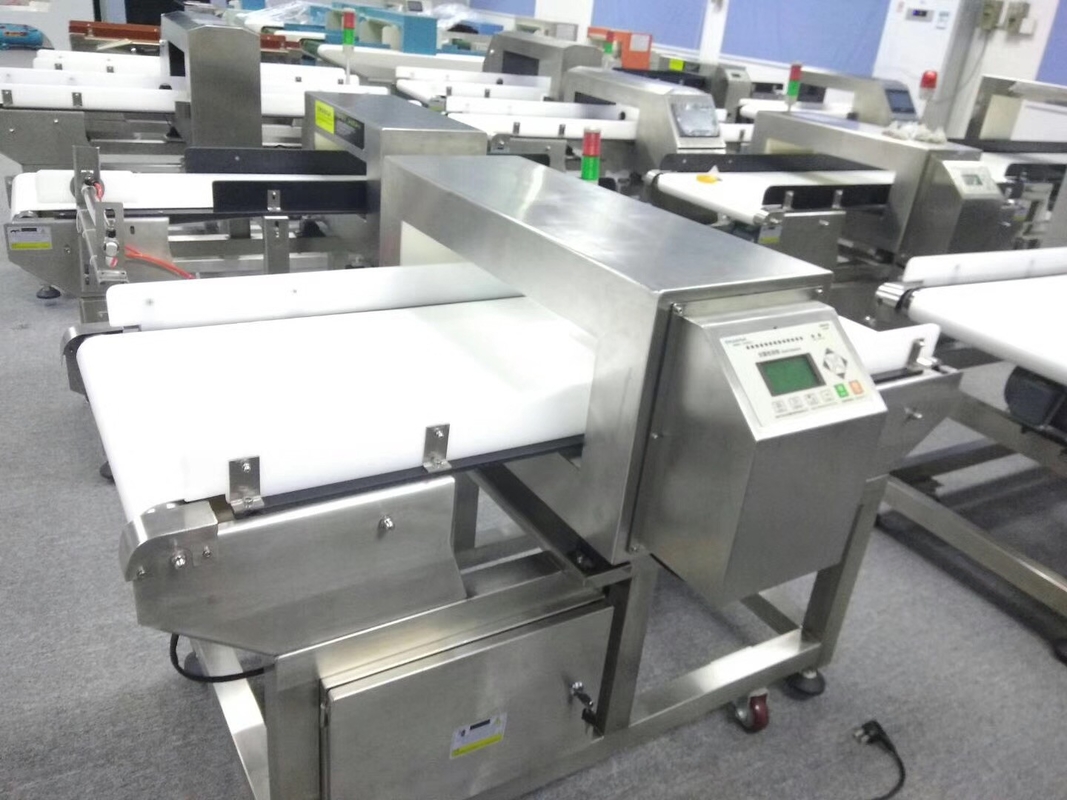

Multi-frequency Auto Balance Conveyor Belt Metal Detector FA-MD-II
The conveyorized FA-MD Metal Detector system can be configured to suit factory and product requirements. It includes different reject options including as a Stop on Detect (band stop), air blast, pusher, carriage retract band, diverters or powered decliners. This system is ideally suited for packaged product from both the food and pharmaceutical industries.
It can detect all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferrous metal (Copper, Aluminum etc.) and Stainless Steel.
-
| Name |
Full Digital Intelligent Metal Detector |
| Sensitivity |
Super High Sensitivity |
| Auto-setting |
Support Intelligent Auto-setting, once pass is enough to complete auto-setting process. |
| Inspection Size |
Tailored as per inspected product size |
| Stability |
High stability with auto-balanced function |
| Software Language |
English/Spanish/France/Polish, etc. |
| Capability |
Detect out all types of metal contaminants |
-
-
Our Metal Detector has very intelligent Auto-setting function, it is enough to complete the Auto-setting process by passing
through the inspected product once on our metal detector.
So even if for a new user, only a few minutes needed to set up Fanchi Metal Detector.
- High Stability with Auto-balanced Function
Benefits from the auto-balance function, Fanchi Metal Detector can keep super high stability even if for out-sized model.
With our aut-balance function, customers don't need to to do manual calibration frequently, or even no need to calibrate them
manually for years.
Non-ferrous:1.0mm diameter ball
SUS: 1.2 mm diameter ball
Alarm: Audible and visual with automatic stop can install with the auto-rejection equipment according customer’s requirement.
Power: AC110V/220V/380V 50/60Hz.
Table of Sensitivity
| |
25*8cm |
30*10cm |
40*15cm |
50*20cm |
60*30cm |
| FE |
≥0.5mm |
≥0.8mm |
≥0.8mm |
≥1.0mm |
≥1.5mm |
| SUS |
≥1.2mm |
≥1.5mm |
≥2.0mm |
≥2.5mm |
≥3.0mm |
Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on condition of different products being tested.
Way of alarming: sound and light alarm, stop running automatically.
Performance
Detection style: digital intelligent with LCD display
Language : English,
Motor power: 200w/400w
The main material: SUS 304
Speed of transmission: 18-40 meter/minute
height of inspection window(cm):10
width of inspection window(cm):40
Highest Sensitivity: Ferrous 0.5mm diameter ball
- We pay attention to each details of the whole manufacturing process, all metal parts of Fanchi Metal Detector adopts Stainless Steel 304 at least. All the key parts we use are from internatioinal established brands.
