Overview

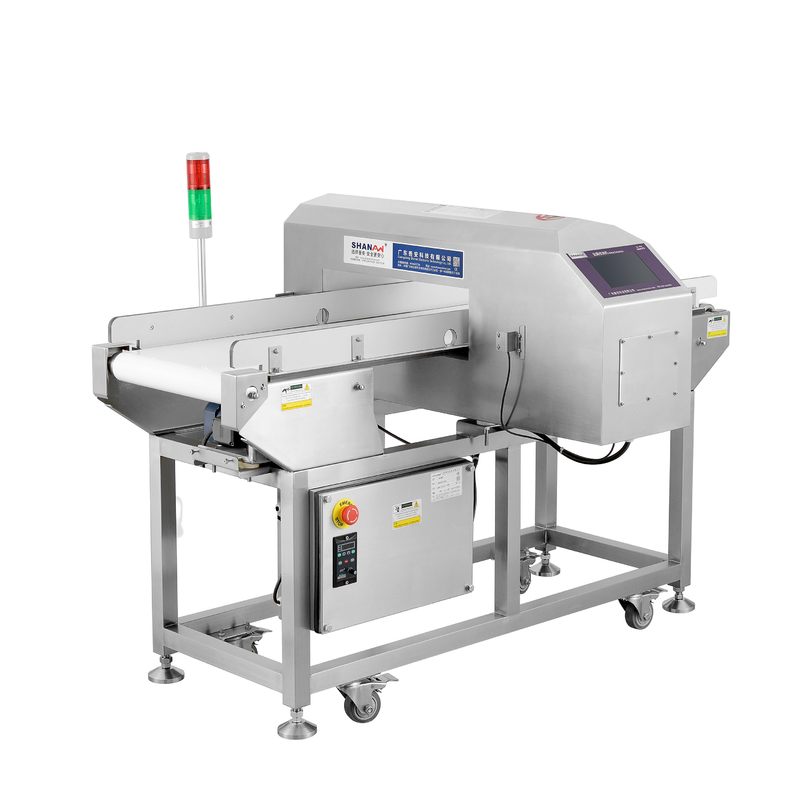

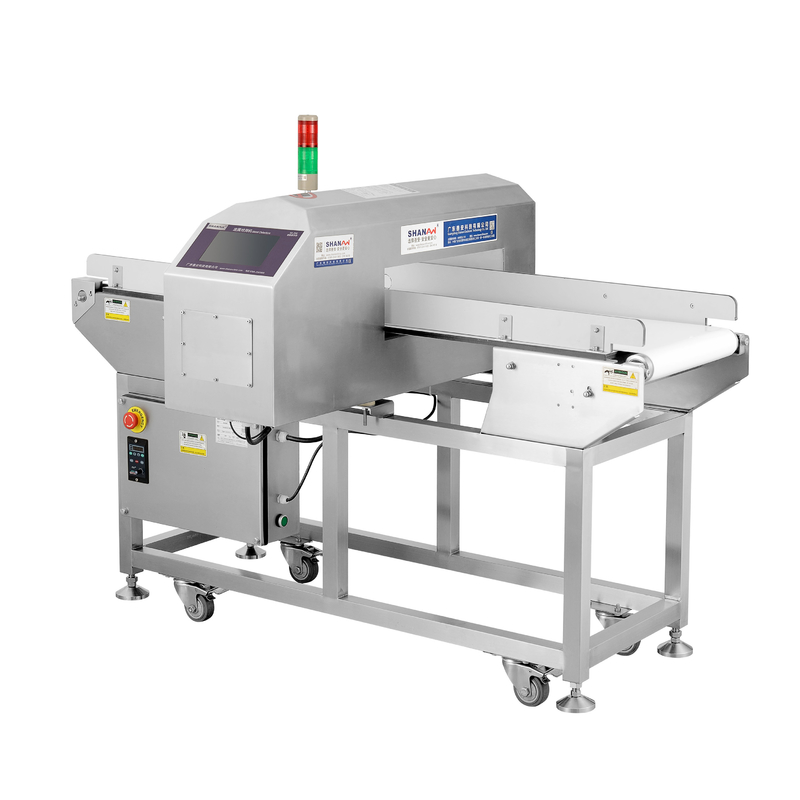

New design FDA Food Grade Metal Detector Machine For Food Industrial
-
| Type: |
industrial metal detectors |
|
|
| Brand Name: |
V FINDER |
|
|
| Product name: |
Food Industrial Full Digital Metal Detector |
|
|
| Electrical source |
220/110V |
|
|
| Power |
120W |
|
|
| Raw Material: |
304 Stainless steel/ 316 Stainless steel |
|
|
| Transfer ability: |
10KG |
|
|
| Place of Origin |
Dongguan, China |
|
|
| Model Number |
VDF-5025 |
|
|
| Detection window |
500 mm (Width) x 250 mm (Height) |
|
|
| Screen: |
Digital |
|
|
| Function: |
Technique Of Phase Adjustment |
|
|
| Belt width(MM): |
250 |
|
|
-
-
Introduction
Advanced technique of electrical & mechanism designs is adopted for EJH series digital intelligent auto-conveying metal detector which have reasonable structure, beautiful appearance, highly detection sensitivity and stable behaviors. It is characterized by high detecting sensitivity and stable & reliable performance.
Comparing with traditional simulation detector , the function is more complete , the capability is more stable and dependable. It accord with the demand of certification-HACCP, QS, ISO9001, FDA.
Feature
LCD display, DSP digital signal processing technology, OSD menu in Chinese and English Recording and memory function: able to store up to 20 kinds of different products. Dual- channel and dual-frequency detecting to detect all metals: Fe and non-ferrous metals like stainless steel respectively. 360 degree phase identifying technology adopted to decrease product effect and improve sensitivity in non-ferrous metal detecting. With high stability: no alarm even being hammered. The Food industry conveys belt confirms to FDA standard and can be used to convey unpacked food directly. Can be integrated into production line or automatic equipment.
Non-ferrous:1.0mm diameter ball
SUS: 1.2 mm diameter ball
Alarm: Audible and visual with automatic stop can install with the auto-rejection equipment according customer’s requirement.
Power: AC110V/220V/380V 50/60Hz.
Table of Sensitivity
| |
25*8cm |
30*10cm |
40*15cm |
50*20cm |
60*30cm |
| FE |
≥0.5mm |
≥0.8mm |
≥0.8mm |
≥1.0mm |
≥1.5mm |
| SUS |
≥1.2mm |
≥1.5mm |
≥2.0mm |
≥2.5mm |
≥3.0mm |
Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on condition of different products being tested.
Way of alarming: sound and light alarm, stop running automatically.
Performance
Detection style: digital intelligent with LCD display
Language : English,
Motor power: 200w/400w
The main material: SUS 304
Speed of transmission: 18-40 meter/minute
height of inspection window(cm):10
width of inspection window(cm):40
Highest Sensitivity: Ferrous 0.5mm diameter ball
