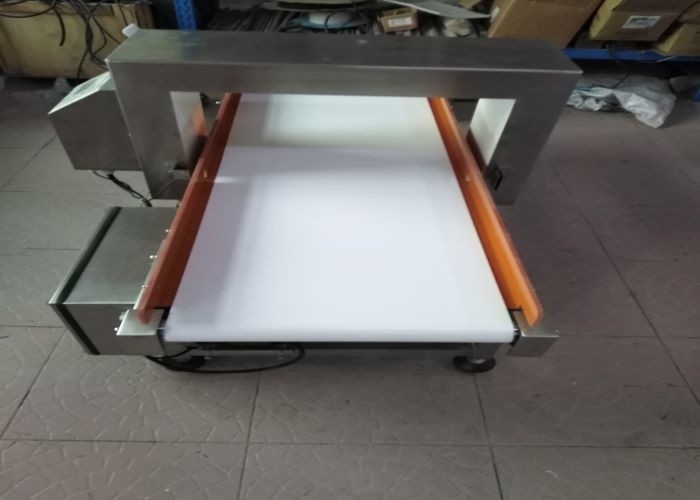

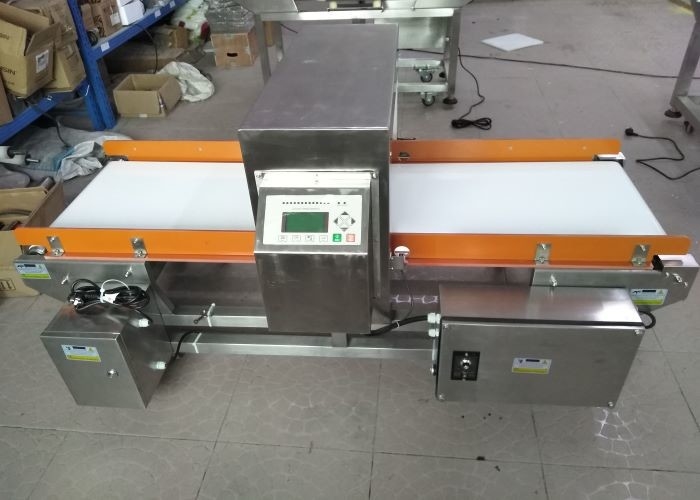

304 / 316 Stainless Steel Belt Conveyor Metal Detector For Food Industrial
Our metal detectors are widely use for the food industrial and an important part of your food packaging operations. The features integral to this food metal detector include:
Detail Specification
| Model | VDF series | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 300 customized | |||||||
| (mm)Detection Height | 80 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.8 | ≥0.8 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| 304Sus(Φmm) | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | ≥5.0 | ≥5.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W ( Customzied) | ||||||||
| Load ability | 5KG | ||||||||
| Height from the earth | 850mm±50mm ( Machines height can be customized) | ||||||||
| Belt Speed | 35-45 m /min | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
Our products are sold all over the world, you can rest assured.
