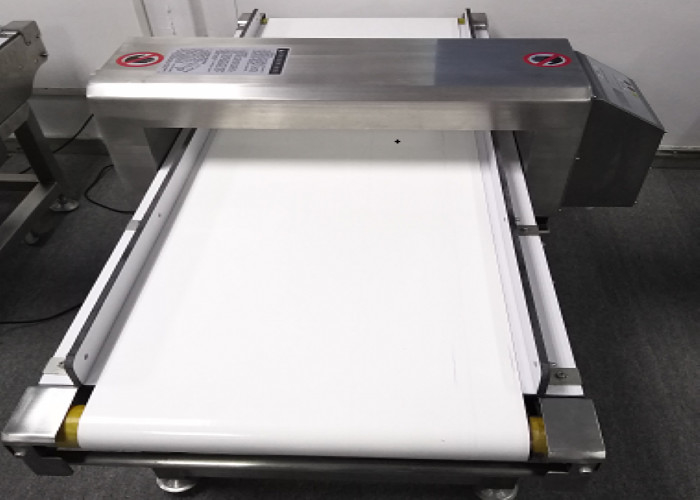

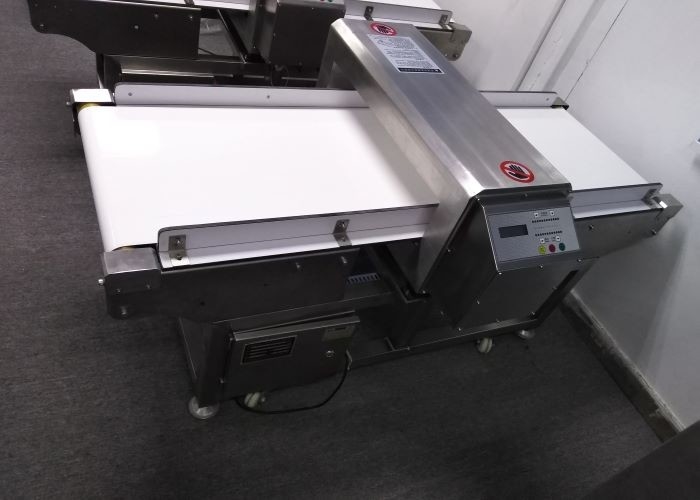

304 SUS Conveyor Belt Metal Detector For Aluminum Foil Packages
Features:
- The use of intelligent software slicing technology solves the problem that electromagnetic metal detectors cannot detect aluminum foil packaging.
It can detect copper, Ferrous, stainless steel, and other metals in vacuum aluminum foil packaging.
Product parameters:
| Model |
SA-508L |
| Type |
Customized |
| Detection Width(mm) |
400 |
| Detection Height(mm) |
100 |
| Sensitivity |
Fe(Φmm) |
≥0.8 |
| Alarm |
Metal foreign object detected automatic alarm shutdown (to be confirmed) |
| Material |
304 stainless steel, can meet HACCP,GMP,FDA,CAS standard |
| Size(mm) |
1550×840×900(L X W×H) |
| power supply |
220V 50Hz |
| Conveyor belt speed |
30-45 m/min(Customized) |
| Weight |
260KG |
| Belt from the earth |
700mm(+150mm) |
| Belt color |
food grade PU belt |
| Product storage |
100 products can be stored |
| Loading capacity |
Within 15KG |
| Operation method |
LCD display touch operation |
| Reject system |
Optional |
| language selection |
Chinese, English |
|
Remark: The above sensitivity parameter is the test result when the empty machine has no environmental interference, and the actual application will be slightly different due to the use environment and the interference of the components of the detected object! The aluminum foil packaging product cannot be detected.
It can be installed according to the different needs of customers, such as automatic flap type, pneumatic swing arm type, pneumatic push rod type, belt retractable type and other rejectors. All machine sizes can be customized!
|
Product introduction:
The metal detector is based on electronics and electromagnetic technology and is manufactured using high-performance electronic components and magnetic sand.
Professional is committed to metal detection in the production process to ensure the company's product quality and loss of equipment.
- Using dual signal detection circuit merger technology, particularly high detection sensitivity and strong and product effect suppression capabilities, widely used. With dual signal display function, when metal pass, the indicator light will show different intensity of induction according to the size of the metal. Using advanced technologies such as DDS frequency synthesis, DSP digital signal processing, and high-efficiency power amplifiers, industry technology is leading.Dual high-speed digital signal processor design with high detection accuracy and high processing speed
- The use of dual high-speed digital signal processor design, with high detection accuracy and high-speed processing speed, with product effect adjustment function. Products such as moist products, sugar-containing products, and salt-containing products will produce metal-like signals on metal detectors. This effect will affect the detection results. This function will reduce product effects and achieve better detection results.
- easy to disassemble the mechanical structure, user-friendly cleaning and maintenance.
- Available to the assembly line production use.
- Full made by 304 stainless steel frame, high-grade protection motor can be selected,The highest IP69 waterproof rating, suitable for particularly harsh working environment.
- Alarm: buzzer alarm and stop, or optional ejector
- A variety of ejector can be choose( Push rod, flap down, Air blast, etc.); precise elimination control, to ensure accurate and reliable removal of foreign objects, to minimize the material waste.
