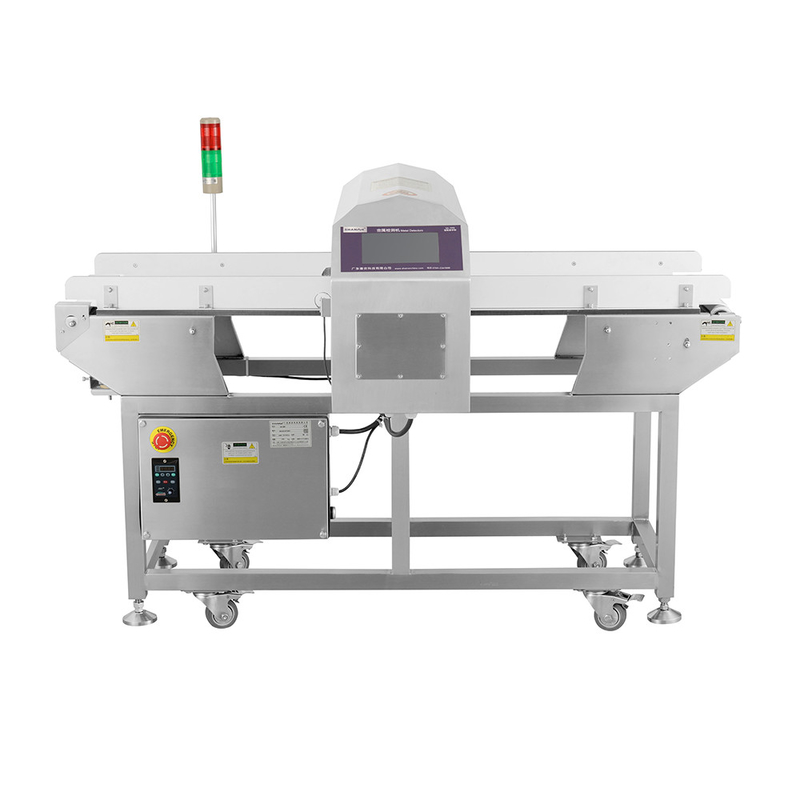

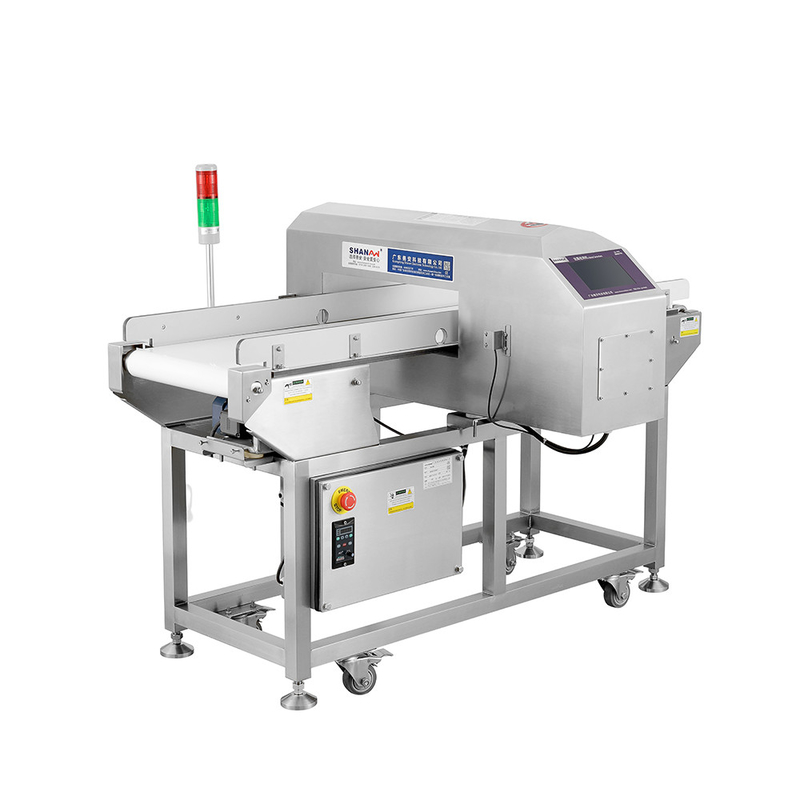

SA-990 Series IP67 Food Metal Detector with 100 Memory

SA-990 Series IP67 Food Metal Detector with 100 Memory

  • Alarm Mode
    Audio And Visual
  • Detection Method
    Electromagnetic
  • Detection Range
    0.2-2.0mm
  • Humidity
    ≤85%
  • Material
    Stainless Steel
  • Power Consumption
    200W
  • Power Supply
    AC220V
  • Product Name
    Food Metal Detector
  • Sensitivity
    High
  • Size
    800mm*600mm*1400mm
  • Warranty
    1 Year
  • Weight
    20KG
  • Working Temperature
    0-50℃
  • Place of Origin
    CHINA
  • Brand Name
    SHANAN
  • Certification
    CE, ISO
  • Model Number
    VFGH-200
  • Minimum Order Quantity
    1 set
  • Price
    negotiation
  • Packaging Details
    Box
  • Delivery Time
    15work days
  • Payment Terms
    T/T
  • Supply Ability
    100 set/month

SA-990 Series IP67 Food Metal Detector with 100 Memory

SA-990 Series IP67 Food Metal Detector with 100 Memory 0SA-990 Series IP67 Food Metal Detector with 100 Memory 1SA-990 Series IP67 Food Metal Detector with 100 Memory 2SA-990 Series IP67 Food Metal Detector with 100 Memory 3SA-990 Series IP67 Food Metal Detector with 100 Memory 4SA-990 Series IP67 Food Metal Detector with 100 Memory 5Parameter:

Item SA-990 Series
Passing width (MM) 500~1200(can customize)
Passing height (MM) 200~1000(can customize)

standard

Detection

Sensitivity

FE(ΦMM) ≥0.5
NON-FE(ΦMM) ≥0.8
SUS304(ΦMM) ≥1.0
Protection level IP67
Number of memory products 100 kinds
Display method LED Screen
Operation method Touch button input
Alarm mode Alarm stop, buzzer alarm or reject mechanism optional
Machine material Carbon steel paint or stainless steel 304,fit for HACCP.GMP.CAS
Machine weight ≥120KG
power supply AC200V±10% 50-60HZ(Customize AC110V or AC380V)
Using environment temperature:-180~50,Relative humidity:30~90
Remarks :01 probe detection window, the size of the whole machine can be customized according to customer needs. The higher the height of the detection window, lower the detection sensitivity, wider the detection window, the lower the detection sensitivity.
02 Detection sensitivity is the detection sensitivity obtained by placing the test card in the center of the conveyor belt through the detection channel. The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
