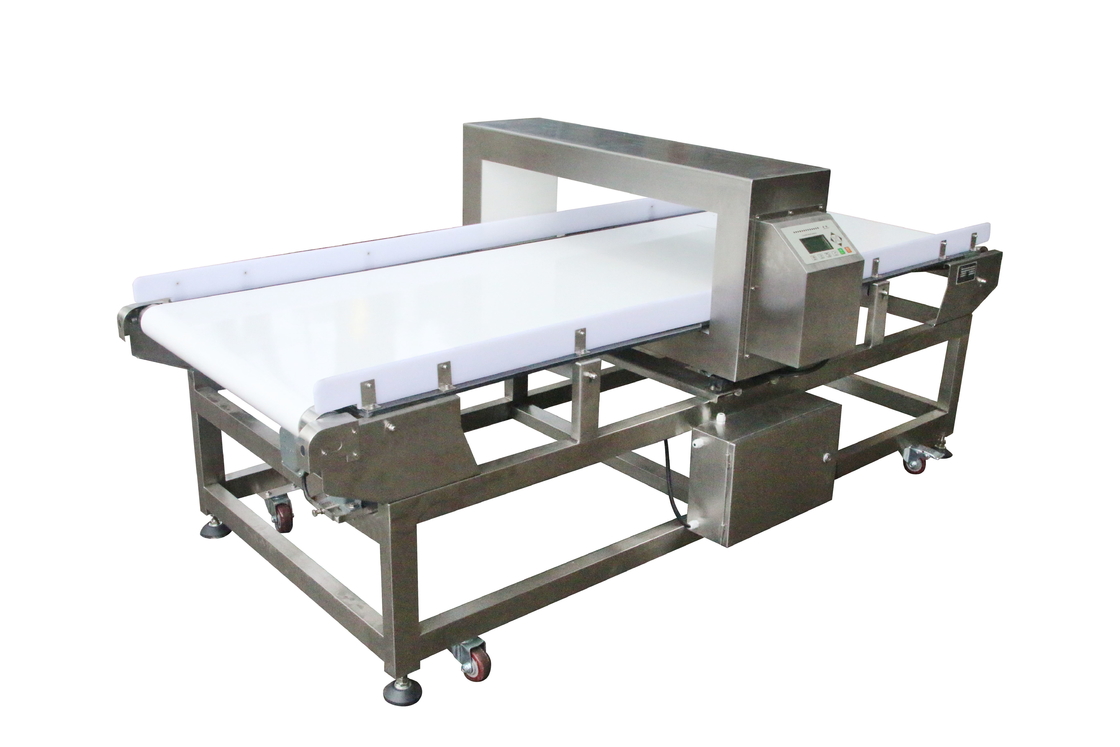

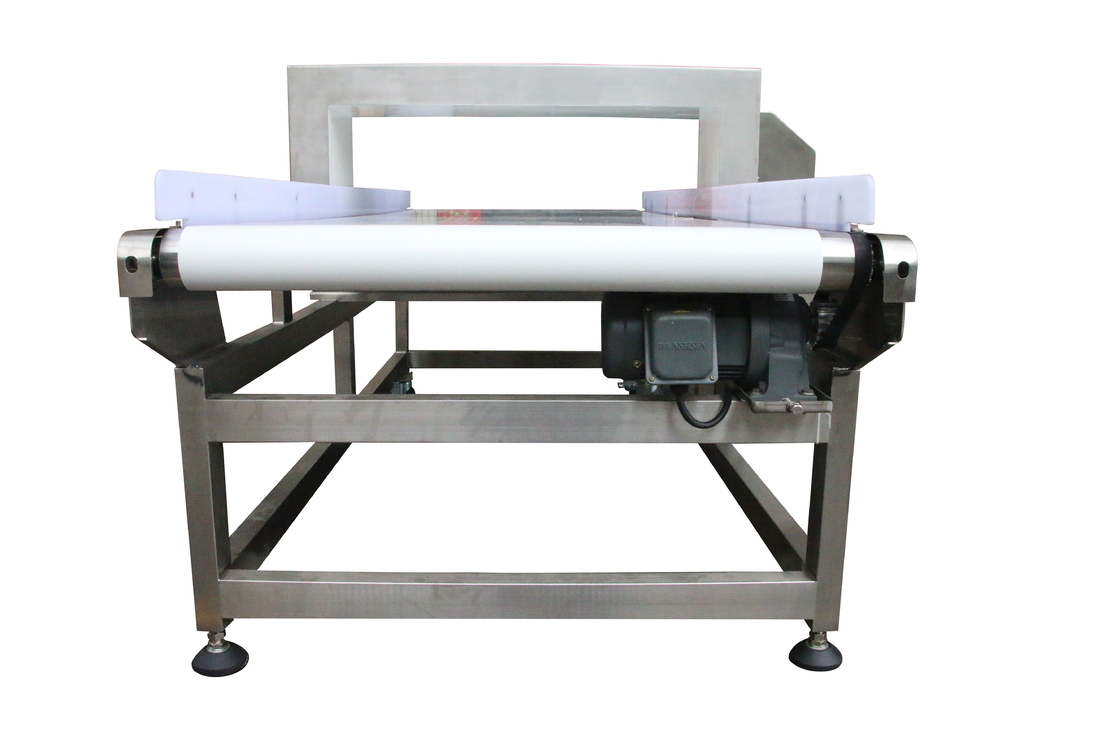

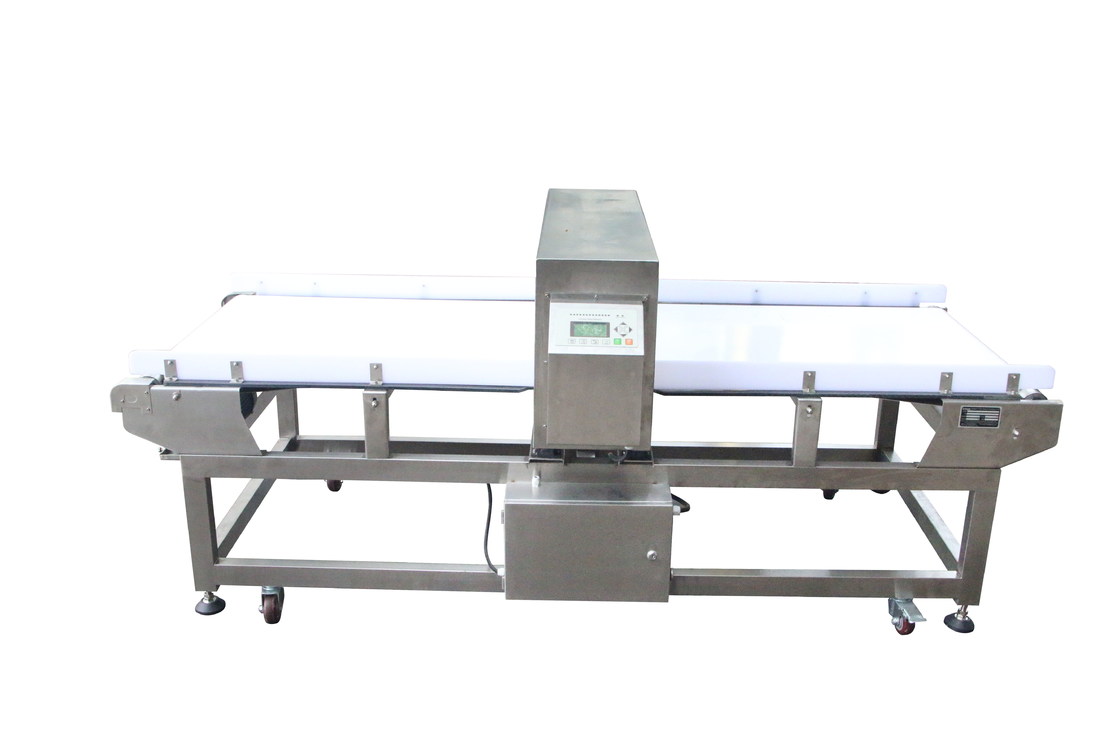

Automatic Conveyor Belt Food Grade Metal Detector For Detecting Metal Losing Inside Food
Brief Introduction:
VDF series metal detector are With extremely high detection sensitivity and anti-jamming ability, excellent performance, for the detection of the highly demanding food industry and other high demand product industry. Mainly for the detection of food, toys and plastics industries , it can be used to detect the broken needles, wire, copper, lead, aluminum, tin, stainless steel and other metals that they are lost or mixed into raw materials or products.
Products advantages:
- Mechanism exported from Germany, Dual-channel metal detection system. Coil with a rectangular aperture (no points).
- Control system: ADLINE microprocessor controller.
- Conveyors: Joint-body PU (polyurethane) Conveyor.
- Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.
- Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
- With memory and learning function, can store 100 kinds of product testing parameters, detecting a wide range of materials.
- Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable and reliable.
- The combination of DSP and micro-controller data items on the test sample and treatment to improve detection.
- Special transport mechanism designed the maxi-Size sensitivity of metal detectors.
- Flexible modular design can be customized according to different requirements.
- Mirror stainless steel with open transport system. Easy to clean .
- Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
- With superior shock interference.
Application:
- Food / Beverage
- VMF series metal detector Devices are designed for use in the food and beverage industries. This includes not only food products, but also packaging and products that come into contact with foods and beverages.
- Packaging
- VMF series metal detector device are used in the packaging industry to detect metal in feed materials or packages.
- Plastic / Rubber
- VMF series metal detector Devices are suitable for use in plastic or rubber processing industries.
- Recycling
- VMF series metal detector Devices are used in the recycling industry to remove or sort bulk material.
- Textiles
- VMF series metal detector devices are designed for use in the textile industry
- Logging / Wood
- VMF series metal detector Devices are suitable for use in logging, saw mill or wood processing applications. Metal staples, nails and inclusions can destroy expensive saw blades and cutting tools.
- Lubrication
- VMF series metal detector can detect metal chips, burrs or inclusions in lubrication systems. These metal detectors are used to protect expensive machinery from rapid deterioration.
Specification:
| Model |
VDF series |
| Machine specification |
Normal machine |
Customized width |
| (mm)Detection Width |
400 |
300 customized |
| (mm)Detection Height |
100 |
120 |
150 |
200 |
250 |
300 |
350 |
400 |
| Detection Sensitivity |
Fe(Φmm) |
≥0.6 |
≥0.8 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
| Non-Fe(Φmm) |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
| 304Sus(Φmm) |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
| Alarm and rejector system |
Automatic stop by alarm and sound or push rod or falling drop |
| Machine structure |
Full structure takes of stainless 304 |
| Machine size (mm) |
L1520mm×W830mm×H1000mm if customized it will according to customized size |
| Machine weight |
Around 250KG if customized the weight will different |
| Voltage and power |
220V 50Hz 90W |
| Load ability |
5-25KG conveyor belt running speed :25-30m/min or customized various |
| Height from the earth |
650mm±50mm can customized |
| Note :Normal size machine have stocks. Unnormal size machine have to customized |
