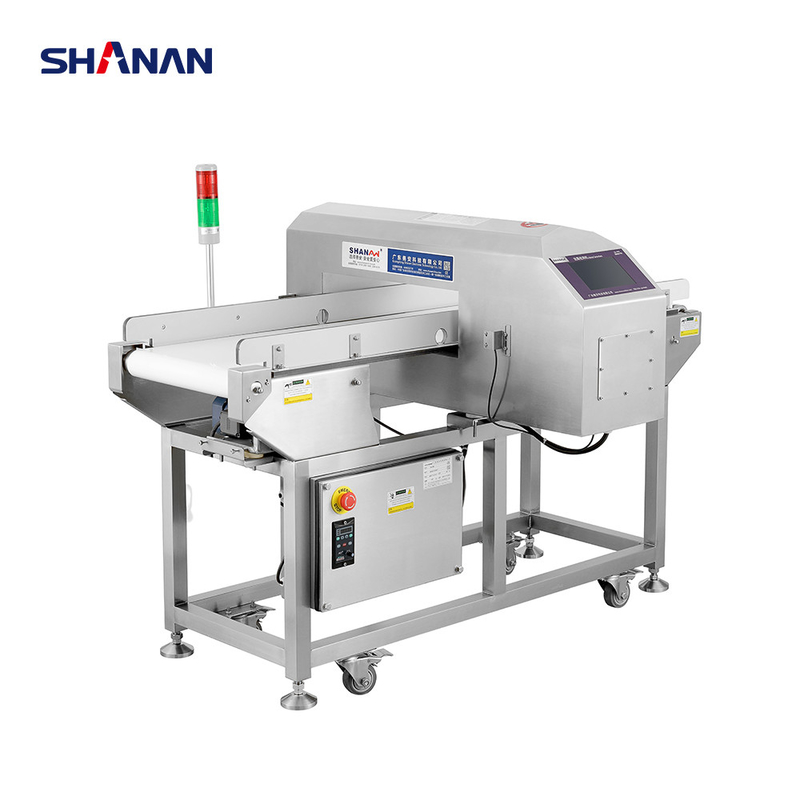

SHANAN Metal Detector for Food, Sound/Light Alarm, Push Rod Reject System

Quick Details:
- Place of Origin: China
- Brand Name: SHANAN
- Model Number: VAF-3015
- Certification: CE, ISO
- Warranty: 2 years
- Alarm: Sound and light
- Reject system: Push rod
- Power Source: 110V/220V AC
- Conveyor Length/Height of Pass Line: 800mm/750±50mm
- Tunnel Size: 300*150mm
- Machine Length: 1450mm
- Type: Conveyor Belt Type
- PN: 18
- Application: Non-package, plastic package, paper bag or box (non-metallic) product

Description:
The FDA Metal Detection Standards/Food and Drug Metal Detector/Food Metal Detection System is a product designed by SHANAN Technology Co., Ltd. It is a metal detector used in the food industry to detect ferrous and non-ferrous metals, as well as stainless steels, in fresh and frozen products, either unwrapped or wrapped, even in metallised films. The machine has a learning function of automatic identification for different detection products to try its best to reduce the influence of material effect. It is suitable for wet, dry, dust, dew environment, made of stainless steel, has HACCP attestation and waterproof IP65.

Features:
- High sensitivity, stability, and flexibility
- Wide range of output signals and information provided
- Non-ferrous metal detector and metal detector for the food industry
- Automatic identification function for different detection products
- Customizable sizes and reject system according to different products and lines
- Suitable for wet, dry, dust, dew environment
- Made of stainless steel
- HACCP attestation and waterproof IP65
- Sound and light alarm
- Push rod reject system

Parameters:
- Power Source: 110V/220V AC
- Conveyor Length/Height of Pass Line: 800mm/750±50mm
- Tunnel Size: 300*150mm
- Machine Length: 1450mm
- Type: Conveyor Belt Type
- Warranty: 2 Years
- Alarm: Sound and Light
- Reject System: Push Rod
- Certificate: CE, ISO
- PN: 18
- Detected Products Height: 80, 120, 80, 100, 120, 150, 200
- Detected Products Width: 300, 300, 400, 400, 400, 400, 400
- Belt Width: 250, 250, 350, 350, 350, 350, 350
- Speed of Belt: 27M/min (can adjust 5-40 M/min)
- Load Ability: 20KG
- Count: 100
- Reject Ways: Sound and light alarm with belt stopped; (when has auto-reject system, belt continues and rejects the goods)
- Application: Non-package, plastic package, paper bag or box (non-metallic) product
- Work Environment: Temperature -10℃-40℃, relative humidity 30-90%

Application:
The FDA Metal Detection Standards/Food and Drug Metal Detector/Food Metal Detection System is widely used for medium or small packages and bulk food, medicine product lines, and more. For example, frozen dumplings, meatballs, aquatic products, sanitary napkins, chafing dish material, prepared food.

FAQ:
Q: What is the warranty period of this product?
A: The warranty period is 2 years.

Q: What is the reject system of this product?
A: The reject system is a push rod.

Q: What types of products can be detected by this machine?
A: Non-package, plastic package, paper bag, or box (non-metallic) products can be detected by this machine.

Q: Is this machine suitable for wet or dry environments?
A: Yes, it is suitable for wet, dry, dust, dew environments, and has waterproof IP65.

Q: What is the speed of the belt?
A: The speed of the belt is 27M/min (can adjust 5-40 M/min).
