Mechanism exported from Germany, Dual-channel metal detection system. Coil with a rectangular aperture (no points).
Control system: ADLINE microprocessor controller.
Conveyors: Joint-body PU (polyurethane) Conveyor.
Combined with two-way signal detection circuit technology, liquid crystal display operations in English and visualization.
Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all
can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
With memory and learning function, can store 12 kinds of product testing parameters, detecting a wide range of materials.
Completed by the digital signal processing circuit can detect all metal objects, adjusting the simple, stable and reliable.
The combination of DSP and microcontroller data items on the test sample and treatment to improve detection.
Special transport mechanism designed the maxi-Mize sensitivity of metal detectors.
Flexible modular design can be customized according to different requirements.
Mirror stainless steel with open transport system. Easy to clean .
Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
With superior shock interference.

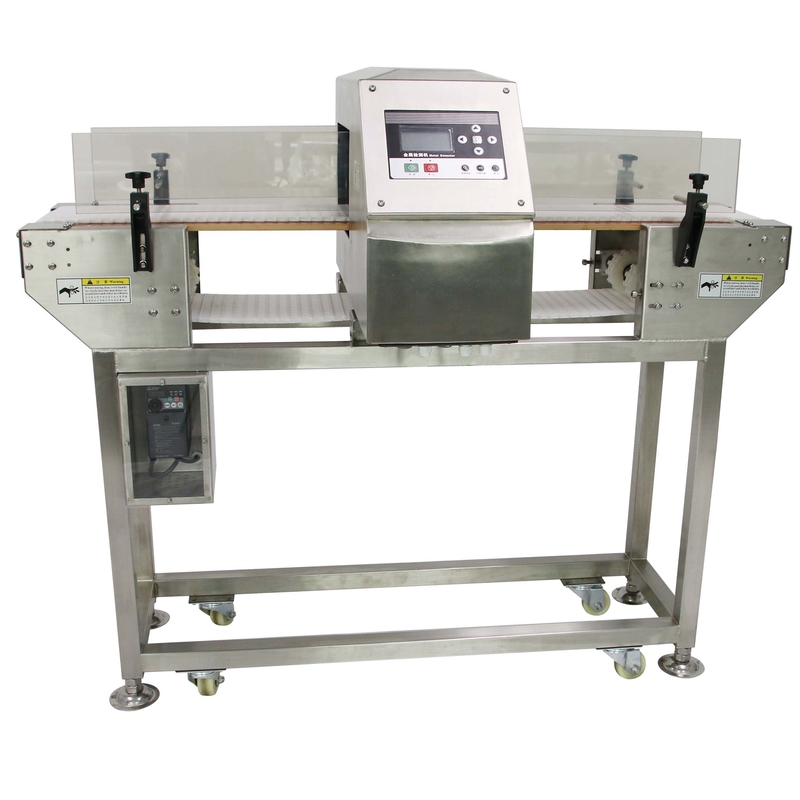

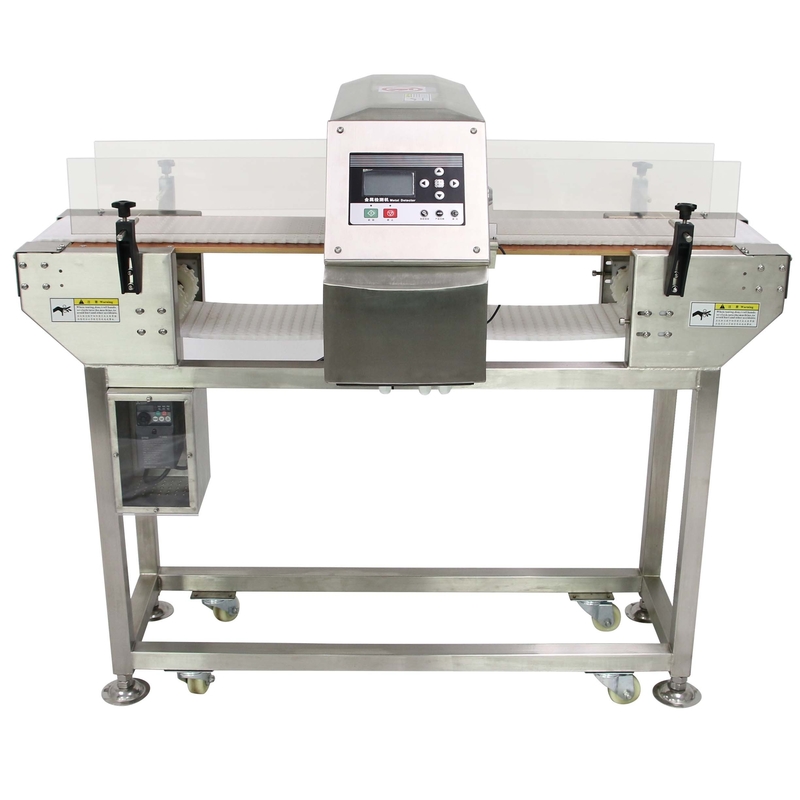

Conveyor style :Chain conveyor style
Mianly inner parts of the machine and materials :
The motor we takes of JSCC adjustable motor
The coil wire used to make of Metal detector we takes of japan Hitachi
Optional PCL control fall drop rejector ststem .This device can effectively separately the metals and normal product
Optional Feed hopper .this device contribute to gather together especially for the scraps things
Warranty
12 month labor and parts
Full life technical support
Packing and shipment
Full machine takes of two layer package
Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
Eng package takes of Strong ploy wooden case that meet different country import standard
Installation and use
When you takes of the package .up the rubber base ,use wheel move it to your work place.
Then down the rubber base and fasten it..keep all the base in a horizontal
Then running the machine few hours before use ,No need complex installation .
The user guide will make in book and Videos for customer reference .
Sensitivity reference
| Model | VCF Chain conveyor system | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 400 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 110v 220V or 380v 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed :10-35m/min or customized various | ||||||||
| Height from the earth | 650mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
