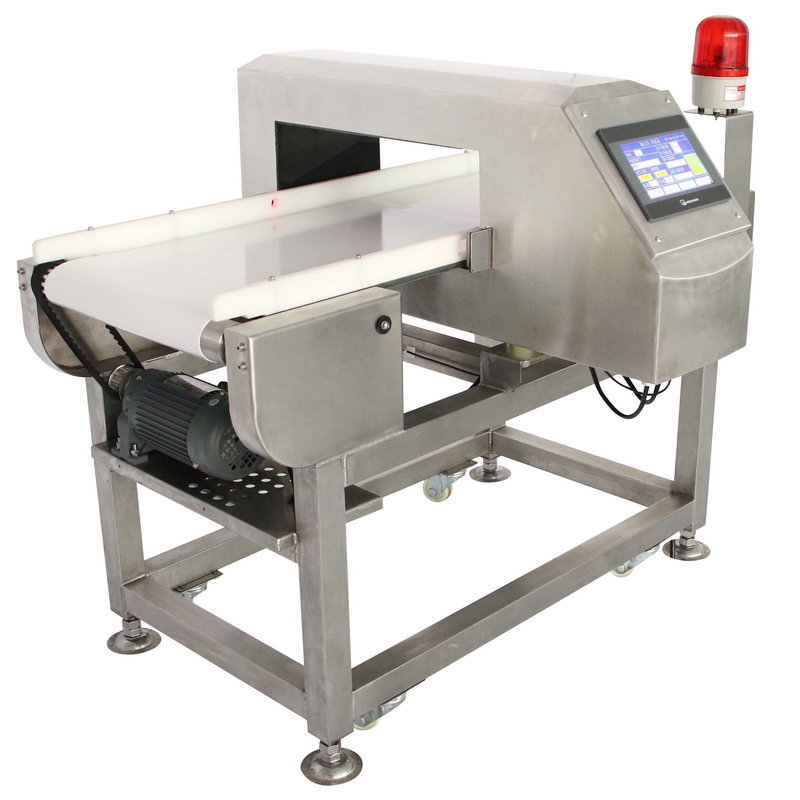

Touch screen digital food grade metal detector for food processing line
Short Specification
- Self-frequency adjustment.Enjoys a variety of operating frequency, according to products style self automatic adjustment.
- Can store and records about 100 product parameter data .easy for different production line shift
- Can according to customer production line design the belt height so achieve butt-joint toother equipment
- Two digital collection line keeps it good performance .

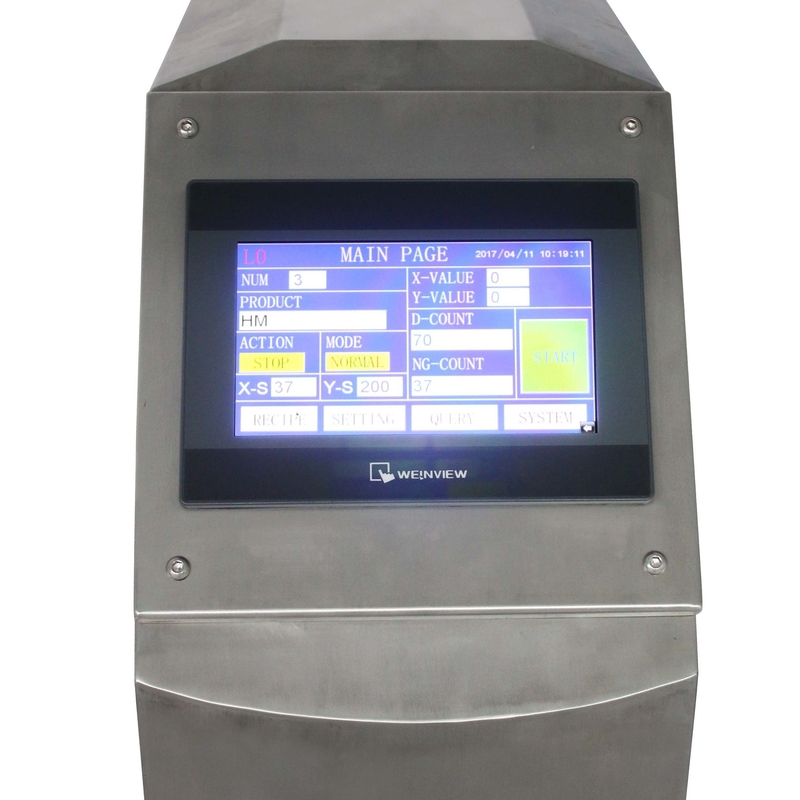

- Full Digital touch screen help it is easy to operate .
- Special design for strong anti-interference function for harsh production environment
- High standard shake-proof, water-proof keep it super performance and long service life.
- Improve design keep it Zero wrong alarm when tap the probe.
- Succinctly detachable framework design let it easy for the operators to clean the equipment.
Sensitivity reference
|
Details
Tunnel size
|
40*12cm |
40*15cm |
40*20cm |
50*15cm |
50*20cm |
50*25cm |
50*30cm |
| Sensitivity Fe(mm) |
0.8 |
1.0 |
1.2 |
1.0 |
1.2 |
1.5 |
2.0 |
| Sensitivity SUS(mm) |
1.5 |
2.0 |
2.5 |
2.0 |
2.5 |
3.0 |
3.5 |
| Detection height |
120 |
150 |
200 |
150 |
200 |
250 |
300 |
| Detection width |
400 |
500 |
| Belt speed |
10-35 meters per minute adjustable
|
| Alarm method |
Light and sound and optional reject
|
Reject system :
- Standard: Automatic stop by alarm and so on.
- Optional: Air blast ( especially for light food)
- Optional: Push rod ( especially for middle bag, small box)
- Optional: Fall drop ( especially for some graints, biscuits and so unpack product
Standard replace use Layout parts :
- One set of hex wrench
- Full sets of the range calibration test cards(Ferrous,non-ferrous ,Stainless steel)
Warranty
- 12month labor and parts
- Full life technical support
- Packing and shipment
- Full machine takes of two layer package
Package:
- Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
- The package takes of Strong ploy wooden case that meet different country import standard
Installation and use
- When you takes of the package .up the rubber base ,use wheel move it to your work place.
- Then down the rubber base and fasten it..keep all the base in a horizontal.
- Then running the machine few hours before use ,No need complex installation .
- The user guide will make in book and Videos for customer reference .
