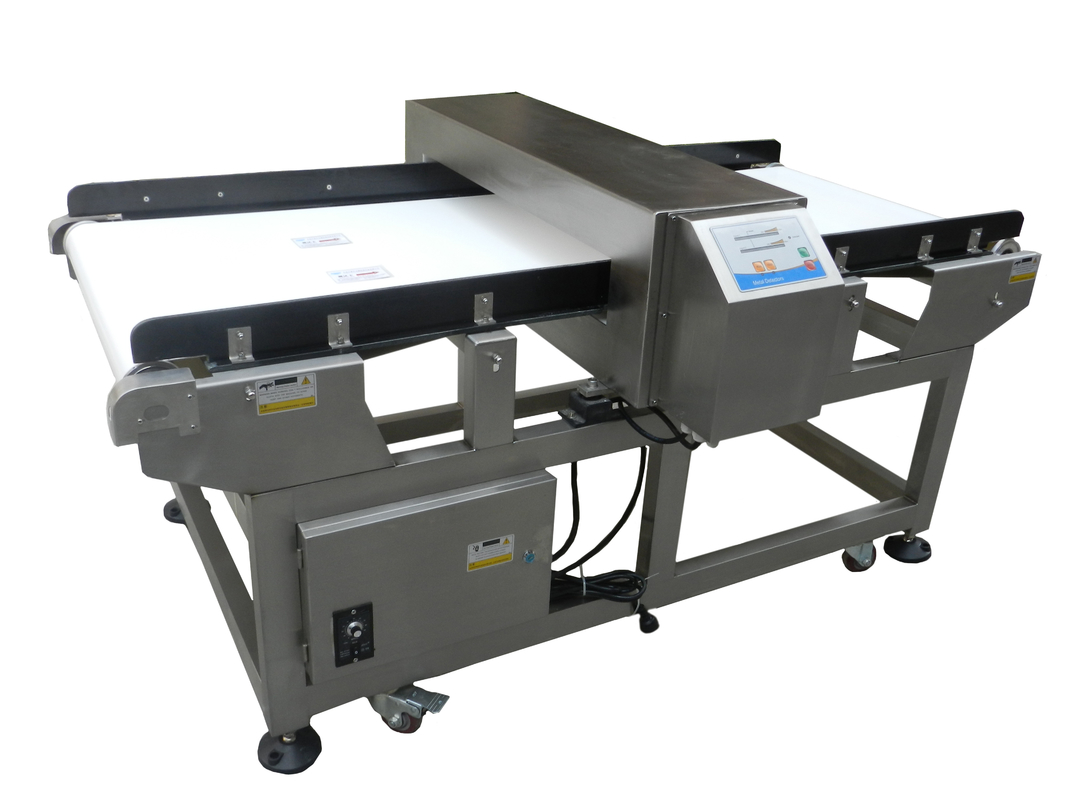

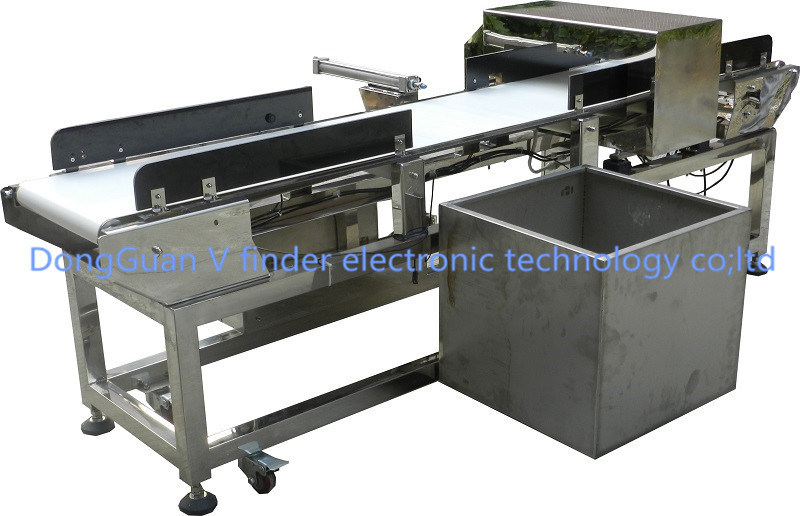

High sensitivity metal detector food used conveyor metal detector price
Product advantages:
Can identify a variety of magnetic and non-magnetic metals (such as iron, stainless steel, aluminum, etc.)even if the metal embedded in the products.
Adopts the double circuit signal detection circuit, high sensitivity and strong anti-disturbance ability.
Has the double circuit signal demonstration function. When the metal good is passing, the signal light will demonstrate different induction according to the size of the metal.
Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
Can avoid missing detection. When several metal signals are passing, the machine will automatically record the signal amount, so it won’t have missing detection.
Control system: ADLINE microprocessor controller.
Conveyors: Joint-body PU (polyurethane) Conveyor.
Special transport mechanism designed the maximize sensitivity of metal detectors.
Flexible modular design can be customized according to different requirements.
Mirror stainless steel with open transport system. Easy to clean.
Conveyor belt adopts imported white ones safe to food.
Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
Technical parameters:
| Model | VMF series | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 400 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized | ||||||||
| Height from the earth | 650mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
Our products are sold all over the world, you can rest assured.
