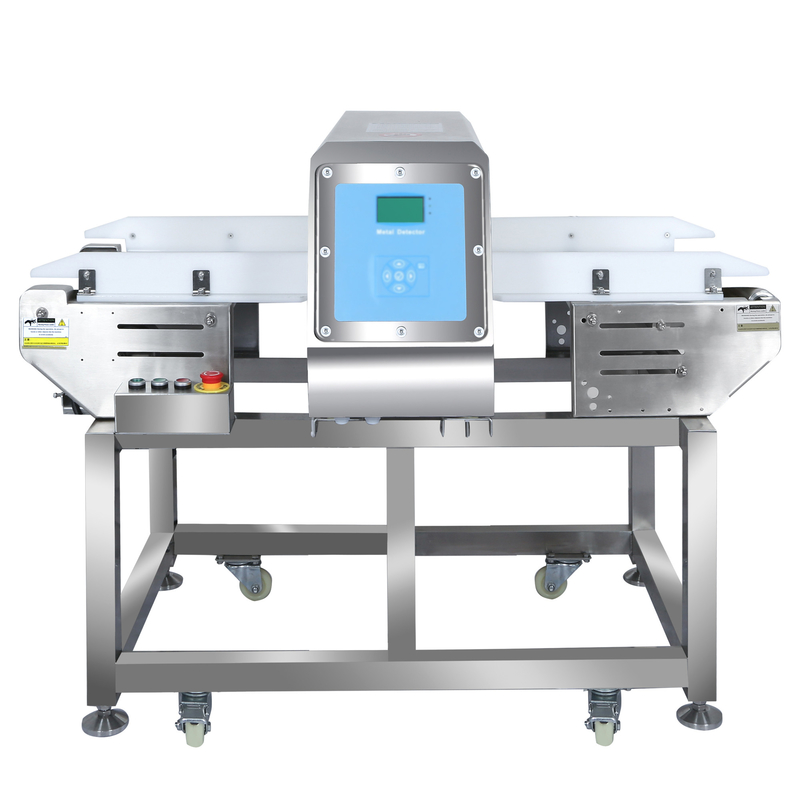

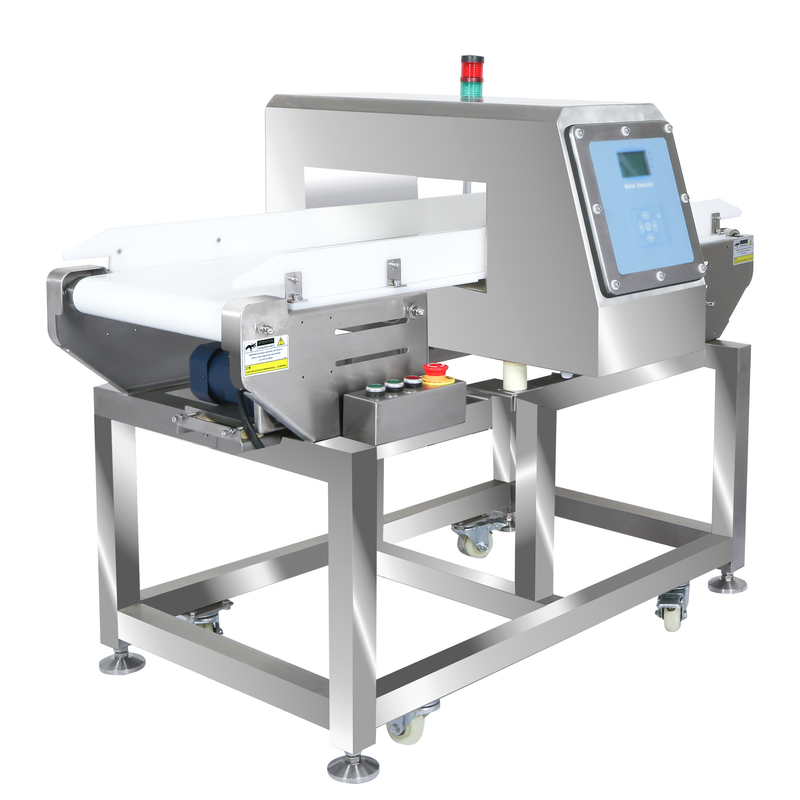

Food industry Metal Detectors for meat, fish, seafood, vegetable, fruit, Sports Food
The versions of metal detectors designed and manufactured by Idecon adapt also to the features of the bulk products. The maximum length of the conveyor belt can reach 1650 mm assuring always the maximum sensibility during the detection.
Idecon metal detectors meet the strictest requirements of functionality, compactness, accuracy and reliability.
Idecon metal detectors are also used for packed products (pouches, trays, bags, etc.) and they can detect magnetic and not magnetic metals which can contaminate the industrial products.
General specification :
Self-frequency adjustment .Enjoys a variety of operating frequency, According to products style self automatic adjustment.stable features.
Application :
Food industry
Medical industry
Food additives
Baby products
Health products
Other industry that need reject and detect metals
Standard replace use Layout parts :
One set of hex wrench
Full sets of the range calibration test cards(Ferrous,non-ferrous ,Stainless steel)
Warranty
12month labor and parts
Full life technical support
Packing and shipment
Full machine takes of two layer package
Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
Each package takes of Strong ploy wooden case that meet different country import standard
Installation and use
When you takes of the package .up the rubber base ,use wheel move it to your work place.
Then down the rubber base and fasten it..keep all the base in a horizontal
Parameters:
| Model | VTF series | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 500 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized various | ||||||||
| Height from the earth | 750mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
Reject system(optional)
Optional reject 1 :Push rod
Optional 2:flap drop
Optional 3:Air blast
Our products are sold all over the world, you can rest assured.
