Any type of metal contamination in your product is definitely a food safety issue – I am sure we can all agree on that. I have pretty strong views around this subject mainly because I have observed so many metal detectors fail to detect metal imbeded in the product when tested during a certification audit.
Any good metal control program first starts with prevention rather than detection. You need to stop the metal contamination from happening in the first place. My first step would be to implement a suitable preventative maintenance program and foreign matter prevention program. Both programs should have adequate monitoring to ensure that the programs are being successfully implemented.
To strengthen your program you can then look at detection and removal equipment including magnets, metal detectors, sieves, visual, xray etc.
Product advantages:
Application :
Food industry
Medical industry
Food additives
Baby products
Health products
Other industry that need reject and detect metals
Warranty
12month labor and parts
Full life technical support

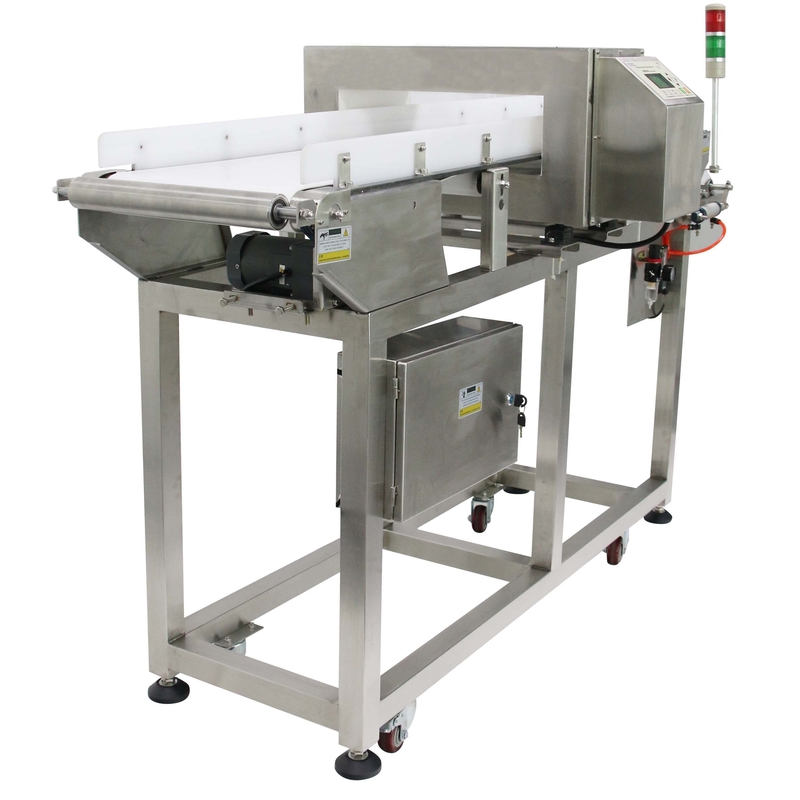

Detail Specification:
| Model | VDF series | ||||||||
| Machine specification | Normal machine | Customized width | |||||||
| (mm)Detection Width | 400 | 500 customized | |||||||
| (mm)Detection Height | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Detection Sensitivity | Fe(Φmm) | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 |
| Non-Fe(Φmm) | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | |
| 304Sus(Φmm) | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5 | |
| Alarm and rejector system | Automatic stop by alarm and sound or push rod or falling drop | ||||||||
| Machine structure | Full structure takes of stainless 304 | ||||||||
| Machine size (mm) | L1520mm×W830mm×H1000mm if customized it will according to customized size | ||||||||
| Machine weight | Around 250KG if customized the weight will different | ||||||||
| Voltage and power | 220V 50Hz 90W | ||||||||
| Load ability | 5-25KG conveyor belt running speed :25-30m/min or customized various | ||||||||
| Height from the earth | 750mm±50mm can customized | ||||||||
| Note :Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
Reject system(optional)
Optional reject 1 :Push rod
Optional 2 flap drop
Optional 3 Air blast
Our products are sold all over the world, you can rest assured.
