Liquid Pipe food metal detector for peanut processing industry
Company information:
Vfinder is a manufacturing company specialized in the design, engineering and production of Metal Detectors .check weigher .needle detector and Electromagnetic Inspection Devices.we offering solution for food industry ,Pharmaceutical industry , Textile garment industry ,Rubber industry .Tory industry where the factory need help to control their quality for find broken needles and metals .
Under our solution and machine support our valued customer can accreditation with the FDA ,ISF ,HACCP even FCCA request and requirement .
Meanwhile we strongly support the all the world public security career.with our support by our product of walk through metal detector and x ray baggage scanner . So many public can be safety , so many dangerous products can been keep away from public people .
Product information:

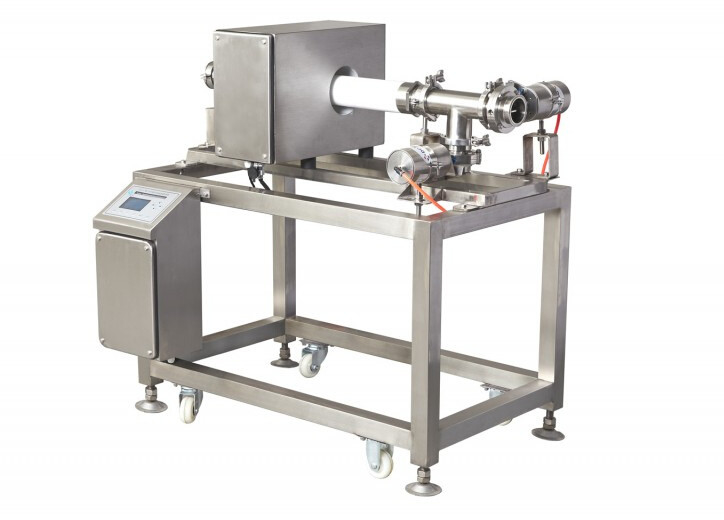

Our Liquid pipeline Metal Separator’s equipment technology is from German KOCH.
It comes from the principle of electromagnetic induction. It is a high precision detection equipment for magnetic and nonmagnetic metal and a metal separator equipment.
Can detect materials including iron (magnetic) and non-iron(nonmagnetic: copper, aluminum, tin, Stainless Steel, etc.) If ferromagnetic metals into detection area will affect regional distribution of magnetic line.
Also change the magnetic field distribution. Non ferromagnetic metals into detection area will produce eddy current effect, also will change the magnetic field distribution.
Normally, Metal Detector combines with two parts, induction coil and automatic removing device, in those, core part is detector.
Diameter 25 Technical Parameter (high precise)
Series of detection sensitivity: Fe≥φ 0.6mm Sus≥φ 1.0 mm Ca≥φ 1.0 mm
Main metal detector dimension( except hopper and support)
Equipment shell material: A3 steel plate painting coated or #304 stainless steel plate
Total power:Power cable: 3m international triangle plug
Contact part with raw material: Nylon, carbon steel, stainless steel, Aluminum
Compressed air 8mm international standard pipes connection
Gas: 04.L/separator action
Detection precise: volume metal particle (normal metal),can adjust according to different situation
Action Time: 0.5S to 5 S, longer time the more waste discharge
Parameters:
| Pipe Diameter | 25MM | 35MM | 50MM | 80MM |
| Detect Capacity | 200KG | 500KG | 800KG | 2000KG |
| Machine weight | 25KG | 35KG | 35KG | 35KG |
| Sensitivity | FE≥φ0.4mm SUS≥φ0.8mm CA≥φ0.8mm |
FE≥φ0.5mm SUS≥φ1.0mm CA≥φ1.0mm |
FE≥φ0.6mm SUS≥φ1.0mm CA≥φ1.0mm |
FE≥φ0.8mm SUS≥φ1.2mm CA≥φ1.2m |
| Machine dimension mm | 318X230X326 | 318X230X320 | 318X230X320 | 378X270X350 |
